Category Archives: Storage

2001, Customizations, Mainsheet, Storage

Flatware and Utensil Storage

1 Comment

Flatware and Utensil Storage
Bob Bierly
11/1/2001
Hull #: 255

Flatware storage: I bought a standard wooden flatware storage box from a popular regional kitchenware store; I mounted it with hinges under the hanging shelf, with the hinges toward the settee and the opening toward the galley. I use a bayonet catch to hold the box up against the bottom of the shelf when its closed and use a short length of lifeline cable to hold the box when open at about thirty degrees. This gives my wife an accessible flatware storage, which seems to have been omitted in this Catalina. My wife misses the drawers from the Catalina 34 galley.

Utensil storage: Many chefs like to store cooking utensils in a crock or like item immediately adjacent to the stove. I mounted an open topped wooden box about 3x3x5” box in the open space behind the stove to serve

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

2001, Customizations, Mainsheet, Storage, Tables

Westerbeke 42B Engine – Upgrades & Start Proceddure

2 Comments

Westerbeke 42B Engine – Upgrades & Start Proceddure
Warren Elliott

Date: 8/1/2001 Hull #: 44

 WESTERBEKE 42B ENGINE

About 225 of the C380’s have the 42B engine, while later 380’s and all 390’s have the Yanmar 3JH3. Some of the early 42B’s initially developed internal overheating associated with the last two cylinders, causing permanent loss of compression and resultant hard starting or non starting.

Several upgrades were instituted early on by Westerbeke and Catalina, both of whom have been very responsive. Most, probably all boats already have theses changes. But, because there have been some questions on this appearing on Sailnet, mostly from second owners, I thought it would be appropriate to summarize these changes for some who may not be aware.

There have also been comments on the 42B’s starting procedure, so this is here, too. The latter is already on the 390-390 website: www.Catalina380.org, and the upgrades should

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

2001, Anchor and Windlass, Customizations, Mainsheet, Repair/Replace/Maintain, Storage

Anchor Locker Ideas

2 Comments

Anchor Locker Ideas
Sid Sytsma
11/1/2001
Hull #: 242

I have added the following items to the anchor locker:

(1) A West Marine (SJPRO#960012 @ $26.95) line holder. I have also mounted one in the port lazarette holes line up exactly with ones in place for the seat latch no drilling.

(2) I have mounted a reel of Ankoralina line for deploying a lunch hook. Very handy and does not take much space. The reel has about 185 of polyester strap that has approximately the same strength and stretch as ½ nylon three-strand line. The Ankoralina does dual duty as a jackline.

I have mounted a 25# Danforth High Tensile on a piece of teak using the bracket that is typically used to hang a Danforth style anchor on a stanchion (West Marine #488353 @ $34.99). At the bottom of the teak board (that runs the full depth of the

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

2001, Customizations, Mainsheet, Storage

Aft Cabin Mirror and Storage

3 Comments

Aft Cabin Mirror
Bob Bierly
11/21/2001
Hull #: 255

I removed and reinstalled the aft cabin mirror on a cleat mounted on the underside of the steps and through the head wall. I now store screens, trays, between the back of the mirror and the bulkhead. I cut a 10” inspection port into the seat on the port side of the bed. The storage area inside is amazing. I installed a board between the storage area and the manufacturer-installed drawers at the foot of the bed to keep errant stored items from finding their way into the vicinity of the prop shaft coupling and stuffing box. That was the only thing I had to do to make this a very sizable long-term storage area.

The side toward the fridge port side is left open. The storage is formed between the bulkhead, the head wall on the starboard end and the

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

1999, Customizations, Mainsheet, Storage

Niffty “Starboard” Projects

4 Comments

Niffty “Starboard” Projects
Forrest & Suzie Lott

2/1/1999
Hull #: 90

We have all seen this white plastic material being used throughout the marine industry. It forms the aft perch seats of our own 380’s. Forrest and Susie Lott have put the material to excellent use in several projects on their Andiamo. Forrest mentioned that the material is very easy to work with using normal woodworking tools. He discovered that it does not glue well, so he made up all joints with countersunk screws.

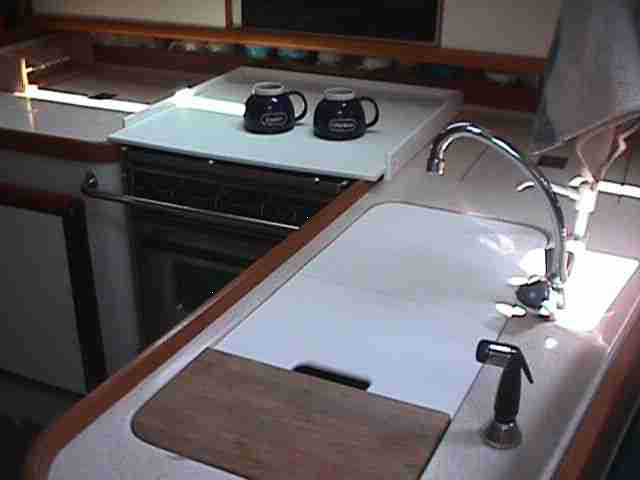

First, they increased galley surface space immensely by adding stove and sink covers. The sink board has been built in two pieces so that they can work on one part and still access the sink.

Their next project was a motor mount for the outboard. It needed to be tall enough to keep the foot of the motor from striking the deck when hung on the

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

1998, Customizations, Storage

Spare Propane Locker Becomes Cockpit Cooler

5 Comments

Spare Propane Locker Becomes Cockpit Cooler
Dave Peffer

11/1/1998
Hull #: 20

We rarely need two propane bottles aboard, and we don’t want to open our refrigerator more often than absolutely necessary. My solution was to line the outside of the spare (starboard) propane locker with insulation, working from below in the lazarette. I used three wraps of roll insulation (from a home store) which sandwiches bubble-wrap between layers of foil, lightly gluing it and wrapping it in place with nylon strapping. The bottom was covered with expanded foam insulation board, and the joints sealed withlatex expanding foam insulation (Find this stuff! It cleans up with water!).

The locker cover was lined with the same rigid board insulation. Here I cut one piece to fit inside the water-exclusion fiddle, another to extend down just into the round part of the locker, using contact cement to hold them in place on

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

1998, Customizations, Storage

Lazarette Setup

5 Comments

Lazarette Setup
Dave Peffer
10/1/1998
Hull #: 20

Who wants to climb down into the lazarette to fetch stored items? Why not hang them up in easy reach? We were going to install athwartships stringers under the seat hatch hinges to install hooks but found stainless line hangers at West Marine (model # 243834). These install on the bolts holding the helmsman’s seat supports without any modification, at all, and the hooks are full half-circles. Nothing can fall off even in a full spinnaker broach. We have the emergency tiller and access-plate wrench, a boat hook, spare lines and fenders, a loud-hailer, the windshield and a bag for the dinghy oars on these. A boarding ladder and bucket are fitted with light retrieving lines, which are also hung on these hooks for easy retrieval. The PFD bags sold by marine stores fit snugly through the lazarette hatches, and we keep

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

1998, Customizations, Storage

Head Lid and Seat Support

Leave a comment

Head Lid and Seat Support
Dave Peffer
10/1/1998
Hull #: 20

The earlier hull numbers were designed without support for the lid and seat in the raised position, which means the hinges break. I made a “T” support of teak, which is screwed into the bulkhead behind the head. Since the bulkhead does not line up with the hinge axis, the “T” is angled 8 degrees to provide a direct 90-degree support for the lid. A rubber tip protects the lid. Looks OK, works fine.

You need to be logged in to see the rest of this content.  Catalina380-IA members, please login.

To join please fill out a membership application (Association->Membership Application) and send a check to the address on the form.

1998, Customizations, Storage

Handy Holder

Leave a comment

Handy Holder
Dave Peffer

10/18/1998
Hull #: 20

A swing-down white plastic tray/drawer that mounts easily under the medicine cabinet to hold small items such as milady’s makeup, wallet and change, car keys and whatever. It has positive detents in the up and down position. It is available from ABC, Inc, 1-800-877-4797
